Setting Oil Burner Electrodes. How To Adjust Oil Furnace Electrodes? New adjusting oil burner electrodes Group: alt.home.repair Date: Sun, Oct 19, 2003, 11:11pm From: [email protected] (meirman) In alt.home.repair on Sun, 19 Oct 2003 04:48:40 -0400 (EDT. Burner Control Manual: GeniSys® 7505 120V Oil Burner Control; The Professional Service Man's Guide to Power Gas Burners; Burner Control Manual: GeniSys® 7565 Advanced Oil Burner Control.
Oil burner gun depth adjustment YouTube from www.youtube.com
Set Ignition Electrodes:; Align Electrodes: Position the ignition electrodes 1/8 inch above the nozzle. The electrodes are typically located near the oil nozzle, within the burner.
Oil burner gun depth adjustment YouTube

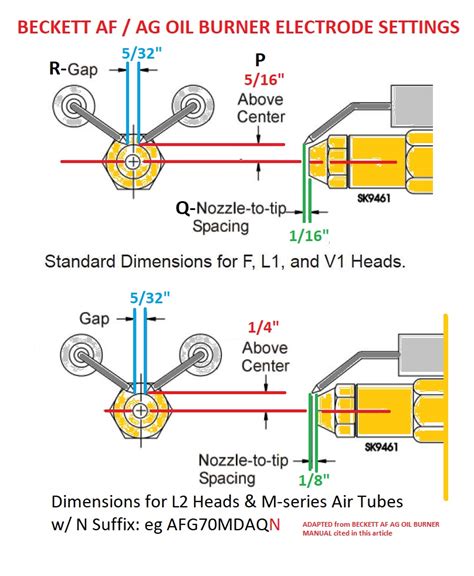

Learn Beckett oil burner electrode adjustment, igniter troubleshooting, and nozzle assembly instructions in this comprehensive manual. [Click to enlarge any image] These questions & answers were posted originally F, FBX, L and V head settings are set by aligning the electrode tip with the 5/16″ cross marks
82784S Carlin 9" Electrode Set For EZ Oil Burners The Granite Group. Begin by removing the nozzle line electrode assembly. [Click to enlarge any image] These questions & answers were posted originally
Oil Burner Electrode Assembly Inspection, Cleaning, Adjustment. Adjust if necessary to comply with the dimensions shown in Figure 2 The standard 5/16" dimension can be used on all Series AF, AFG, SR, SM and SF burners using the "F" style head and will remain the standard setting for our L1, V1 and FBX airtube combinations
